Hydrogen Powered Shelby Cobra: FULL Vehicle Conversion

by James W. Heffel

University of California, Riverside, CE-CERT
Douglas C. Johnson ,Cal-Draulics, Carroll Shelby, Carroll Shelby Enterprises

ABSTRACT

This paper describes the details of converting a gasoline powered 427 Shelby Cobra to run on gaseous hydrogen. The purpose of this project was to design a vehicle capable of beating the current land speed record for hydrogen powered vehicles.

The vehicle uses a modified 427 Ford FE engine as the power plant with a specially designed electronic fuel injection system for metering the hydrogen. The engine was designed to produce near zero emissions (<10 ppm NOx) at approximately 270 HP using a lean burn, “quality controlled”, fueling strategy (no pollution control devices are utilized).

INTRODUCTION

In the early 1990’s, a long time hydrogen advocate named Ben Jordan built a trophy to be given each year to the fastest hydrogen powered vehicle. The competition is held at the Bonneville Salt Flats in Utah. The current record for this competition is 108.268 mph held by AHA member, Terry Young of Middle Tennessee State University. Since there is currently no official class for hydrogen fueled vehicles, the vehicles are run in what is called a “time only” category 1). The goal was to build a vehicle capable of beating that record and win the Ben Jordan trophy

BACKGROUND

Hydrogen is widely regarded as a promising transportation fuel because it is clean, abundant, and renewable. In a gaseous state, it is colorless, odorless, and non-toxic. When hydrogen is combusted with oxygen, it forms water as the by-product. Due to hydrogen’s high flammability range, it can be completely combusted over a wide range of air/fuel ratios. Unlike gasoline, which if combusted outside its optimal air/fuel ratio will produce excess carbon monoxide (CO) and hydrocarbons (HC), hydrogen does not have a carbon element and therefore will not produce those toxic gases.

Like gasoline however, when hydrogen is combusted in air (mixture of oxygen and nitrogen) the temperature of combustion can cause the formation of the nitric oxidizes (NOx). Hydrogen however has an advantage over gasoline in this area because it can be combusted using very high air/fuel ratios. Using a high air/fuel ratio (i.e. combusting hydrogen with more air than is theoretically required) causes the combustion temperature to drop dramatically and thus causes a reduction in the formation of NOx. Unfortunately, the use of excess air also lowers the power output of the engine. [1]

Over the past eight years, the University of California – Riverside, College of Engineering – Center for Environmental Research and Technology (CE CERT) has been experimenting with improving the performance of hydrogen-powered vehicles. Most of these methods have involved using superchargers [2] and turbochargers [3] to bring up the power. While these devices have worked to some degree, it was felt these methods were too complicated of a solution to a simple problem. The authors of this paper believed the simple solution was to just make the engine bigger. Or use a car that has “way more engine” (Horsepower) than it really needs. The author of this paper chose the latter - and what better car for this than the Shelby Cobra?

The Shelby Cobra

The Cobra was the brainchild of racecar driver, Carroll Shelby. In 1962, Shelby worked a deal with Britain’s AC Cars and America’s Ford Motor Company to develop the quickest production vehicle in the world. Initially, street Cobras were powered by stock HiPo 260 Fords, but were soon replaced with HiPo 289s rated at 271 HP. In January 1963, the Cobra won

its first race at the SCCA divisional race at Riverside Speedway. The racing legacy of Carroll Shelby’s Cobra had begun. Over the next few years, the 289 Cobra dominated the racing circuit. In January 1965, Shelby started the production of the 427 Cobra, which used a Ford 427 side-oiler. Although, the 289 was by far the biggest winner, whatever the 289 did, the 427 did better. The 427 Cobra was and remains the “world’s quickest production car”. That was proven with 0 – 60 mph times of 3.8 seconds, 0 – 100 mph in 10.6 seconds, and 0 – 100 and back to a dead stop in less than 14 seconds. [4]

In 1996 Shelby American, Inc. announced the reintroduction of the Shelby 427 S/C Cobra as the CSX4000 component vehicle. The cars are sold as “rollers” (less the engine and transmission).

In a chance meeting with Carroll Shelby, James Heffel discussed the proposed project with Carroll and with little hesitation; agreed to provide one of his new Cobras for this project.

VEHICLE CONVERSION

The Cobra roller (Vehicle Serial Number CSX 4201) was picked up from Shelby America, Inc. in Las Vegas, Nevada and the engine (an all aluminum 427 cubic inches replica of the original Ford FE side-oiler) was picked up from Shelby’s facility in Gardena, California on August 19, 2000.

Figure 1 – Picture of car as delivered
(no paint engine or transmission)

The car and engine were delivered to Cal-Draulics of Corona,

California, where the hydrogen conversion was to be conducted.

The project was broken down into the following five tasks:

Task 1. Set up the car to run on gasoline.
Task 2. Paint the car.
Task 3. Install the roll cage and fire suppression system
Task 4. Do a car and driver checkout run (on gasoline) at El Mirage Dry Lake Bed.
Task 5. Convert the car to run on hydrogen.
Task 6. Do a record attempt at Bonneville Salt Flats (Oct. 2000)

With limited funds and limited time, the following set of conditions were developed:

Do it as simple as possible
Do it as quickly as possible
Do it as economically as possible (and still beat the record)

Tasks 1, 2, and 3

The first order of business was to get the engine and transmission mated together and then installed this assembly into the car. Instead of the using a 4-speed “top loader” transmission originally used in the 1965 Cobras, a 5-speed Tremec TKO manual transmission was chosen. To comply with the Bonneville National rules, a steel shatter shield was required in place of the aluminum bellhousing. For this, a shatter shield made by Lakewood was used. To mate the shatter shield to the transmission, an adaptor plate, made by McLeod, was used. A Centerforce, double acting clutch and flywheel were employed to provide positive engagement between the engine and transmission. Wayne’s Engine Rebuilding, Inc. of Riverside, California, balanced the clutch, disc, and flywheel. The clutch fork and throw out bearing, normally used on 1970 Ford Broncos, was utilized to finalize the transmission assembly.

To ease the installation of the transmission/engine, the radiator was removed and the engine/transmission assembly was carefully lowered into the car as a single unit. The transmission was secured to the chassis using a transmission mount (new) from a late model Ford Mustang and the engine was secured to the chassis using motor mounts from a 1965 Ford Galaxy Station Wagon (also new). To connect the output shaft of the transmission to the input shaft of the Dana 44 differential, Golden State Axle of Corona, California fabricated a special 13-inch long driveshaft.

Following the installation of the engine and transmission, the car was sent to the paint shop where Tony Avila, Tony, Jr. and Herman Broom gave it the flashy red paint job with two white racing stripes

down the center. Tony, Herman, and Tony, Jr. also assisted in the installation of the hydrogen storage tank. From the paint shop the car went back to Cal Draulics where a small gasoline tank was installed in the trunk of the car so it could be tested on gasoline to verify all the components (engine, transmission, clutch, brakes, etc) were operating properly. Once this was completed, the car went to Cook Motorsports in Norco, California, where the installation of the roll cage and fire suppression system was conducted. All these tasks were completed by October 7, 2000.

Task 4

On October 8, the car was taken to El Mirage Dry Lake Bed in the high desert of California to do a test run on gasoline. A speed of 135 mph was recorded with James Heffel driving. This was not a maximum speed run. This run was performed to verify that both the car and the driver were capable of operating at speeds above the current hydrogen record, prior to attempting this using hydrogen.

Task 5

Hydrogen Fuel Injection System

One of the primary problems encountered in the development of operational hydrogen engines is pr mature ignition (pre-ignition). Pre -ignition occurs when the cylinder charge becomes ignited before the ignition by the spark plug. If this condition occurs when the intake valve is open, the flame can travel back into the induction system. Various fuel injection methods have been experimented with over the years.

These methods have included carbureted systems, which mix the air and fuel at a central point upstream of the intake valves; port injection systems that inject the fuel into the air stream near the intake valve; and direct injection systems that inject the fuel directly into the combustion chamber. For carburetor-type systems, which can have a substantial amount of air and fuel in the manifold, pre-ignition can have a devastating effect. Port injection systems, which tend to have less fuel in the manifold at any one time, can minimize this effect. Running lean (excess air) and precisely timing the injector opening and closing times (tuning the system), can virtually eliminate pre-ignition from occurring.

Direct injection system can eliminate pre-ignition in the intake manifold, however it does not necessarily eliminate it in the combustion chamber. Direct injection systems also require higher fuel pressure and tend to be a little more complicated than the other two methods. The method that was chosen for this project was the port injection system. The fuel injectors used to meter the fuel are solenoid operated, pulse-width modulated, sonic flow injectors especially designed for gaseous fuels. These injectors were provided by IMPCO Technologies, Inc. of Irvine, California. A cross-section view of this injector is shown in Figure 2.

Figure 2 – Cross-section of injector

Numerous design options were considered with regard to the fuel injection system. Knowing little time was available to fine-tune the system (and thus totally eliminating the possibility of pre-ignition), we chose a design that would be somewhat tolerant to an occasional pre-ignition event. This design involved replacing the existing intake manifold (made for a four-barrel carburetor), with an intake manifold designed to use four 2-barrel Weber carburetors.

Figure 3 – Intake Manifold

This new manifold provided short, single runners for each cylinder. For each runner, a 1 ½ inch tall injector body was designed and fabricated to house the injectors.

Figure 4 - Injector body

Each injector body was designed to incorporate a ¼ inch tube that transported the hydrogen from the injector outlet to within an inch of the intake valve. This was to minimize the amount of hydrogen that would be in contact with the air in the runner.

That way if pre-ignition was to occur, damage to the intake system would negligible.

Additionally, a “quality” control fuel strategy was selected as the basis for metering the hydrogen. A distinct advantage of using hydrogen as a fuel, with its wide range of flammability, is the fuel-to-air ratio or the “quality” of the charge mixture can easily be varied to meet different driving conditions or loads. This is similar to the strategy used by diesel engines. In contrast, for a gasoline engine, the fuel-to-air ratio must be kept more or less constant throughout the driving range. In other words, the “quantity” of the charge is controlled. Using a “quality” controlled strategy enables the engine to operate at a constant wide-open-throttle (WOT) position throughout the power band (just add more fuel for more torque).

To communicate to the Engine Control Computer (ECC) the amount of fuel desired, a throttle position indicator was connected to the gas pedal (not to the throttle plates since they are normally at WOT). Basically the gas pedal acted as an electronic sensor that would send a fuel demand signal to the ECC. The ECC would base how long it would hold an injector open on this signal.

To facilitate the starting of the engine, a choke (butterfly valve) was designed and fabricated for each injector body.

Figure 5 – Choke Assembly and Fuel Rail

All eight chokes are linked together and centrally controlled by a hand-operated cable located in the cockpit of the vehicle. Once the engine started, the chokes are pulled to the wide-open position and the “quality” controlled fuel metering strategy is implemented.

Since the design of this system allows the flow of hydrogen and air to each cylinder to be independent of each other, any occurrence of pre-ignition in one cylinder would not influence (ignite) the air/fuel mixture of another. Whereas with systems that manifold all the intake runners together, a pre-ignition in one cylinder can light the whole intake manifold on fire. To maximize the airflow to engine, each manifold runner, intake port, injector body and throttle body were match-ported. See Figure 6.

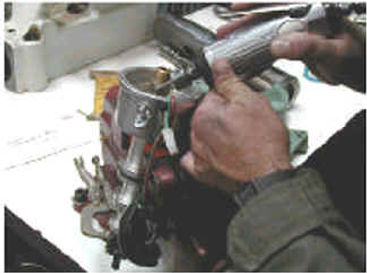

Figure 6– Match porting injector with intake manifold

To supply fuel to each injector, a single fuel rail was designed and fabricated. See Figure 5. This fuel rail contains a port for each of the fuel injectors.

Hydrogen Storage

The hydrogen storage tank was provided by IMPCO Technologies, Inc. of Irvine, California.

Figure 7 – Hydrogen storage tank

The tank has a Type IV rating and uses a plastic bladder wrapped with high strength composite graphite. The tank has a water volume of 87 liters and is rated up to 3,600 psi. At 3,600 psi, the tank holds 590 SCF of hydrogen, which is equivalent to 1.4 gallons of gasoline. At 200 HP, this tank is emptied in about 5 minutes.

Hydrogen Ancillary System

The hydrogen ancillary system consists of a high flow capacity pressure regulator, a manual shut-off valve, a solenoid operated “on/off’ valve, three pressure gauges and a fuel line. The pressure regulator, provided by Control Seal Controls, is used to reduce the pressure of the fuel in the storage tank (3600 psi) to a useable fuel rail pressure of 100 psi. Upstream of this valve is a manually operated ball valve and pressure gauge. A quarter-turn of this valve will shut off the hydrogen in the event of a leak or fire. The pressure gauge reads the pressure of the fuel in the storage tank. Downstream of the pressure regulator is a solenoid-operated valve and a second pressure gauge. The solenoid valve is controlled via a switch mounted in the cockpit of the vehicle. This valve is a “normally closed” valve, meaning in the event of a power failure this valve will automatically close. This pressure gauge reads the pressure at the outlet of the pressure regulator. The third pressure gauge is located at the engine fuel rail and reads fuel pressure at the engine.

The Engine

The engine used for this car is an all aluminum replica of the original 427 Ford side-oiler. Even though this powerful engine would have met the needs of the project, it was decided to bore and stroke it to 526 cubic inches (4.375” x 4.375”) and give it a 12:1 compression ratio This engine was dynamometer tested by Mike LeFevers at 600HP (at 6,100 rpm) using gasoline.

Performance

The theoretical maximum power output from a hydrogen engine depends on the fuel injection method used. This is because hydrogen will displace a large portion of the incoming air, and thus limiting the amount of air that will enter the combustion chamber. For example, the stoichiometric air/fuel ratio for hydrogen 34:1. For this mixture, hydrogen will displace 29% of the combustion chamber, leaving only 71% for the air. As a result, the energy content of this mixture will be 15% less than it would be if the fuel were gasoline (since gasoline is a liquid, it only occupies a very small volume of the combustion chamber, and thus allows more air to enter). Since both the carbureted and port injection methods mix the fuel and air prior to it entering the combustion chamber, these systems limit the maximum power obtainable to 85%

of that of gasoline engines (rough order of magnitude). For direct injection systems, which mix the fuel with the air after the intake valve has closed (and thus the combustion chamber has 100% air), the maximum output of the engine can be 15% higher than that for gasoline engines (again, rough order of magnitude).

Therefore, depending on how the fuel is metered, the maximum output for a hydrogen engine can be either 15% higher or 15% less than that of gasoline if a stoichiometric air/fuel ratio is used. However, at a stoichiometric air/fuel ratio, the combustion temperature is very high and as a result it will form a large amount of nitric oxides (NOx), which is a criteria pollutant. Since one of the reasons for using hydrogen is low exhaust emissions, hydrogen engines are not normally designed to run at a stoichiometric air/fuel ratio.

Shown in Figure 8 is a plot of NOx formation versus equivalence ratio phi (equivalence ratio is the actual air/fuel ratio divided by the stoichiometric air/fuel ratio. If the value for phi is less than one, the mixture has excess air and therefore is lean. If the value for phi is greater than one, the mixture has excess fuel and therefore rich).

The tank has a Type IV rating and uses a plastic bladder wrapped with high strength composite graphite. The tank has a water volume of 87 liters and is rated up to 3,600 psi. At 3,600 psi, the tank holds 590 SCF of hydrogen, which is equivalent to 1.4 gallons of gasoline. At 200 HP, this tank is emptied in about 5 minutes.

Hydrogen Ancillary System

The hydrogen ancillary system consists of a high flow capacity pressure regulator, a manual shut-off valve, a solenoid operated “on/off’ valve, three pressure gauges and a fuel line. The pressure regulator, provided by Control Seal Controls, is used to reduce the pressure of the fuel in the storage tank (3600 psi) to a useable fuel rail pressure of 100 psi. Upstream of this valve is a manually operated ball valve and pressure gauge. A quarter-turn of this valve will shut off the hydrogen in the event of a leak or fire. The pressure gauge reads the pressure of the fuel in the storage tank. Downstream of the pressure regulator is a solenoid-operated valve and a second pressure gauge. The solenoid valve is controlled via a switch mounted in the cockpit of the vehicle. This valve is a “normally closed” valve, meaning in the event of a power failure this valve will automatically close. This pressure gauge reads the pressure at the outlet of the pressure regulator. The third pressure gauge is located at the engine fuel rail and reads fuel pressure at the engine.

The Engine

The engine used for this car is an all aluminum replica of the original 427 Ford side-oiler. Even though this powerful engine would have met the needs of the project, it was decided to bore and stroke it to 526 cubic inches (4.375” x 4.375”) and give it a 12:1 compression ratio This engine was dynamometer tested by Mike LeFevers at 600HP (at 6,100 rpm) using gasoline.

Performance

The theoretical maximum power output from a hydrogen engine depends on the fuel injection method used. This is because hydrogen will displace a large portion of the incoming air, and thus limiting the amount of air that will enter the combustion chamber. For example, the stoichiometric air/fuel ratio for hydrogen 34:1. For this mixture, hydrogen will displace 29% of the combustion chamber, leaving only 71% for the air. As a result, the energy content of this mixture will be 15% less than it would be if the fuel were gasoline (since gasoline is a liquid, it only occupies a very small volume of the combustion chamber, and thus allows more air to enter). Since both the carbureted and port injection methods mix the fuel and air prior to it entering the combustion chamber, these systems limit the maximum power obtainable to 85%

of that of gasoline engines (rough order of magnitude). For direct injection systems, which mix the fuel with the air after the intake valve has closed (and thus the combustion chamber has 100% air), the maximum output of the engine can be 15% higher than that for gasoline engines (again, rough order of magnitude).

Therefore, depending on how the fuel is metered, the maximum output for a hydrogen engine can be either 15% higher or 15% less than that of gasoline if a stoichiometric air/fuel ratio is used. However, at a stoichiometric air/fuel ratio, the combustion temperature is very high and as a result it will form a large amount of nitric oxides (NOx), which is a criteria pollutant. Since one of the reasons for using hydrogen is low exhaust emissions, hydrogen engines are not normally designed to run at a stoichiometric air/fuel ratio.

Shown in Figure 8 is a plot of NOx formation versus equivalence ratio phi (equivalence ratio is the actual air/fuel ratio divided by the stoichiometric air/fuel ratio. If the value for phi is less than one, the mixture has excess air and therefore is lean. If the value for phi is greater than one, the mixture has excess fuel and therefore rich).

Figure 8 – Power, torque and NOx vs. phi

From this plot is can be seen that in order to keep the NOx formation low, a phi of 0.45 (A/F of 80:1) or less is required (above a phi of .45, NOx emissions increase very quickly as the phi increases). Also shown on this graph is a relationship of power (based on an engine speed of 6,100 rpm) and torque as phi changes. At a phi equal to 1 (stoichiometric), this engine would theoretically produce a maximum power and torque of 510 HP and 440 ft-lb, respectively.

However at this power output, the engine would be producing a large amount of NOx emissions. From Figure 8 it can be seen that the maximum “clean” power (at 6,100 rpm) and torque (i.e. near zero pollution without any exhaust gas after-treatment or pollution control devices) would be about 270 HP and 230 ft -lb, respectively. This would occur at a .45 phi.

Figure 9 – Compression vs. Air/Fuel mixtures

Running at a phi of 0.45 also has other benefits besides reducing NOx emissions. The first is its “effective octane” rating is increased (i.e. its ability to operate at higher compression ratio increases). As it can be seen in Figure 9, hydrogen can tolerate compressions of 15:1 at a 60% lean mixture (.4 phi). Whereas, at a stoichiometric or a chemically correct mixture (CCM), it can only tolerate compression ratios slightly above 8:1. Limiting the maximum fueling rate to a phi of .45 (based on low emissions), the engine will have a power vs engine speed curve similar to the one shown in Figure 10.

Figure 10 – Power vs Engine Speed (at phi = .45)

Hydrogen’s simple atomic structure along with its ability to burn under ultra-lean conditions also contributes to a ratio of specific heat closer to 1.4 (ideal gas). Both the compression ratio and the ratio of specific heat are the two variables in the calculation of thermodynamic efficiency (see equation 1).

Where rv = the compression ratio and k = the ratio of specific heats

Equation 1

The higher these values, the higher the thermodynamic efficiency of the engine. The lean air/fuel mixtures also lower the chances of pre-ignition occurring

Valve Timing

The camshaft that came with the engine was designed to produce its maximum power at high engine speeds. It was ground to have 48 degrees of valve overlap and 268 degrees of duration with a 0.74-inch valve lift at .050-inch tappet lift. This type of grind will typically produce excellent airflow (high volumetric efficiency) at high engine speeds, at the expense poor air dynamics at the lower engine speeds. For gasoline fueled engines, this typically means low efficiencies, poor idle, and high emissions. For racing purposes, this compromise for high engine speeds is worth it.

Drivetrain

As mentioned earlier, a Tremec TKO 5-speed manual transmission was installed. This transmission has the following gear ratios:

1 st gear: 3.27:1
2 nd gear: 1.98:1
3 rd gear: 1.34:1
4 th gear: 1:1
5 th gear: .68:1

The Cobra came with a Dana 44 differential with a 3.54:1 gear ratio and a set of B. F. Goodrich P295/50R15 rear tires that have a 26.1-inch diameter. Figure 11 shows a plot of the vehicle speed versus engine speed for this drivetrain.

Figure 11 - Vehicle speed versus engine speed

In order to exceed the current record of 108.268 mph, the vehicle would need an engine speed of more than 5,000 rpm, if the transmission is in 4th gear, or an engine speed of more than 3,350 rpm if the transmission is in 5 th gear. As can be seen in Figure 10, the engine will produce 172 HP at 3,350 rpm and 253 HP at 5,000 rpm. Both of these power levels are well beyond the estimated power level, of 140 HP, needed to propel the vehicle at speed faster than the current record speed of 108.268 MPH.

Ignition System

The engine came with a Mallory Magnetic Breakerless distributor that uses mechanical weights for timing advance (maximum of 32 degrees). This system is mechanically linked to the engine through a gear on the camshaft. Each time the camshaft completes one revolution the rotor of the distributor also makes one revolution. On the same shaft as the rotor are 8 vanes, one for each cylinder (see Figure 12).

Figure 12 - View distributor vanes

Each time one of these vanes pass by the magnetic pick up sensor on the distributor, the coil (single) discharges, sending a high voltage signal through the coil wire to the distributor. This signal would then be distributed to the proper cylinder via the rotor, rotor cap and spark plug wire. This type of ignition system works well for engines that do not have an Engine Control Computer (ECC). However, for this project an ECC was used and therefore another method for ignition timing was employed.

Engine Control Computer (ECC)

A programmable engine control computer (ECC) was utilized to control fuel (sequential injection) and ignition timing. For the ECC to accurately control these two parameters, it needs to know when a piston (typically piston number one) is at TDC and if it is at TDC of its intake stroke or TDC of its power stroke. To do this, two sensors were used: one on the crankshaft (REF) and one on the camshaft (SYNC).

For the REF signal, a Ford 36 minus one tooth gear was installed, along with a Variable Reluctance Sensor (VRS). Each tooth, and corresponding blank space, of the gear generates one complete sine wave as it passes the VRS sensor. Each sine wave represents 10 degrees of crank rotation. Each time the missing tooth appears at the VRS sensor (once every 360 degrees of crank rotation), the sine wave is altered as shown in Figure 13. This altered sine wave indicates to the ECC that the reference piston is at TDC. This however is not enough information to initiate the fuel and ignition events for sequential injection. The ECC still needs to know what cycle (intake stroke or power stroke) the piston is on. For this information, a camshaft position sensor is needed to provide the SYNC signal.

Modifying the Distributor to Provide a SYNC Signal

For this project it was determined that the easiest way to generate a SYNC signal would to be to modify the existing Mallory distributor as opposed to mounting a sensor directly on the camshaft. As mentioned earlier, the Mallory system uses 8 vanes on the distributor shaft to reference the compression stroke of each cylinder (using a magnetic pickup sensor). Removing 7 of these 8 (see Figures 14 and 15) vanes would in essence provide a SYNC signal for the compression stroke of the reference piston (again, piston number 1). The output signal from this system is a square wave.

Figure 14 – Grinding out 7 of the 8 vanes. Figure 15 – View of Distributor with missing vane

Using the two methods described above to determine the SYNC and REF signal, the ECC is now able to accurately determine when piston number 1 is approaching TDC of its compression stroke and thus time the opening of the fuel injectors and spark ignition.

Transmitting the electrical current to the spark plug can be done numerous ways.

The preferred way would be to use a “coil and plug” for each cylinder. This method however is fairly expensive and not necessary for this project.

A simpler and less expensive method was used for this project. This method utilized the existing distributor system (rotor, cap, wires, etc) to transmit the current to each of the spark plugs (similar to the original system. The main difference with the new system is that ignition advance is controlled directly by the ECC and not by centrifugal weights in the distributor.

Task 6

The October meet at the Bonneville Salt Flats was cancelled due to rain and therefore no record run was attempted. A record attempt is planned for the next meet in August of 2002.

DISCUSSION

The design approach for this project was heavily influenced by budget and time constraints. Therefore, not all the design decisions were based on the best option available, but the best option that would work within our constraints. The vehicle described in this report was successfully designed and built under the given time and budget constraints. Whether or not it has met the design goal of this project, that is, setting a new land speed record for hydrogen powered vehicles will be made clear at the next event.

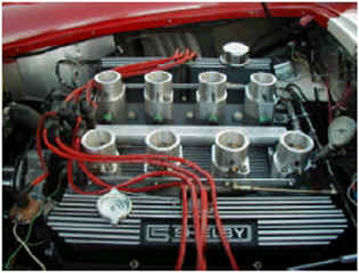

Figure 16 – View of Engine Converted to Run on Hydrogen Figure 17 – View of Cobra. Painted and ready to go.

ACKNOWLEDGEMENTS

The authors would like to thank the following organizations/people that have provided help and/or funding for this project:

Shelby American, Inc., Cal-Draulics, SunLine, IMPCO, KWJ Engineering ,Circle Seal Controls, Clean Air Now! (CAN!), K & N Filters, Ben Jordan, Bob and Dolores Zweig, Tony Avila, Anthony Avila, Herman Broom, Douglas Kruse, Paul Shepherd, Mike Guidry, Larry Dashield (College of the Desert), Bob Marsh, Tom D’antonio, Gary Davis, Deena Heffel, Jeanette Johnson

GLOSSARY

1. FE engine. The FE designation refers to passenger-car and light-truck big block engines built by Ford from 1958 to 1971.

2. Side-oiler. A side-oiler engine has an oil gallery along the left side of the block that feeds the main bearings before the cam bearings.

3. HiPo engine. Engine designation for High Performance.

REFERENCES:

DOWNLOAD A GREAT FUEL MIX PDF HERE

Note that if we make positive earth or remove electrons or keep inbound air positive charged we get alot of powerful fuel. See and Study the Parts builder guide Here

1. Norbeck, J.M.; Heffel, J.W.; Belinski, S.E.; Durbin, T.; Bowden, J.P. Tabbara, B.; and Montano, M. (1996) Hydrogen Fuel for Surface Transportation. Society of Automotive Engineers, Warrendale, PA.

2. Heffel, J.W., and Norbeck, J.M. (1996) Evaluation of Supercharged Hydrogen Fueled Ford Ranger Trucks. CE-CERT Technical Report 95:AV:043F.

3. Heffel, J.W., and Norbeck, J.M. (1995) Evaluation of UC Riverside’s Hydrogen Powered Truck. Proc. Of the 6th

Annual National Hydrogen Association Meeting, Alexandria, VA, March, pp. 85-111.

4. Gabbard, A., (1988) Fast Fords. HP Books.

5. Ricardo, H., The High-Speed Internal Combustion Engine, Blackie and Son, London, 1960.

Jim Heffel is principal engineer for the University of California Riverside CE-CERT
hydrogen research program.

He has published many papers on hydrogen applications and was a key contributor to a fuel cell engine training manual coordinated by College of the Desert.

The manual will be used by A/C Transit of Oakland California to familiarize their technicians on the properties of hydrogen and it’s use in fuel cell busses.

Jim continues refining the Shelby Cobra for another attempt at the land speed record for an alternative fuel vehicle.

As you can see the car has no plates as University Project.

For California at time of Posting The smog test requires that the car's engine not be modified.

You can get vintage or collectors licence an experimental car permit if too wild of build.

To make it street legal.

Or you can Hot Rod for "Midnight Express Runs."

Final Notes

This car runs on hydrogen. Not as a fuel cell would, it uses combustion.

The only exhaust is water vapor, so putting your face directly in front of the exhaust pipe is no more dangerous than putting your face over a boiling pot of water. If you locked yourself in a garage with the engine running you would have a nice sauna, instead of killing yourself.

Because the original Shelby engine does not have fuel injection it needed a more complex modification for hydrogen. The fuel injection cars need little engine modification.

Most of the complexity comes from adjusting the car's computer so that it supports the hydrogen fuel.

A standard Cobra gets 12 mpg on gasoline and that they have the engine configured on this one to get 20 mpg of hydrogen.

Good thing, because this small black hydrogen tank only holds four gallons. If you ordered a new Cobra you could get a bigger tank in there before they put the skin on the frame.

Because this one was a conversion the skin was already there so they went with a smaller tank.

The tank is made of carbon fiber. Much stronger than the plastic gas tank that is probably in my car. It has been drop tested, crash tested, and they even shot it with a gun.

The tank did not explode. Hydrogen dissipates very quickly. Straight up. Even if it were to catch fire there is no ambient heat transferred from the flame. You would have to be directly in the flame to get hurt.

There are even sensors in the back to shut down the fuel flow in case a leak was detected. Kevin told me that he would rather be rear ended in this car than any gasoline powered car.

The engine is currently configured for 250 hp. They could get more out of it

It was really amazing. Like any Shelby it was super powerful.

The exhaust sound had a nice rumble to it and when foot is planted car alarm do go off LOL .
